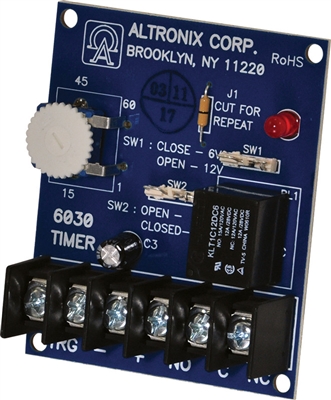

Altronix 6030 Bell Cut-Off Timer Module (Multi-Purpose, 6/12VDC 1 Sec to 60 Min, Board)

The 6030 programmable timer is suitable for most functions that require a timed operation e.g. Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, Pulser / Flasher, etc.

• 6VDC or 12VDC operation is selectable.

Relay:

• Form "C" relay contacts are 8A at 120VAC/28VDC.
• Current draw stand by 3mA relay energizes at 75mA.
• Relay activates at the end of the timing cycle.

Features:

• Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
• Repeat (flasher/pulse) mode.

Visual Indicators:

• LED indicates relay is energized.

Electrical:

• Temperature:
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
