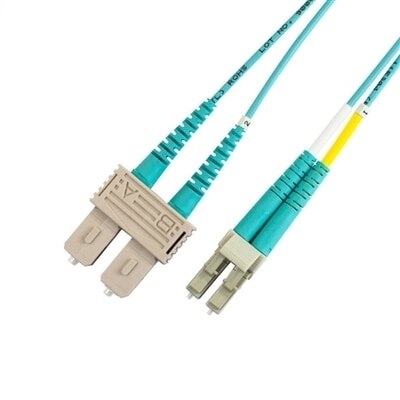

Lynn OM4 100Gb 50/125 Multimode Duplex Fiber Optic Patch Cable With LC/SC Connector - 1m
Lynn OM4 100Gb 50/125 Multimode Duplex Fiber Optic Patch Cable With LC/SC Connector - 1m

Alternative Views:
Price: $13.00
Your Price: $11.00
Savings: $2.00


Product Code: D-L2S2-4R2-001M
Qty:

Description

Lynn OM4 100Gb 50/125 Multimode Duplex Fiber Optic Patch Cable With LC/SC Connector - 1m

Laser optimized fiber optic cable capable of supporting 40 Gigabit Ethernet (40GBASE) and 100 Gigabit Ethernet (100GBASE) networks up to 150 meters. Supports 10 Gigabit Ethernet (10GBASE-SR) networks up to 550 meters. Includes flammability rating OFNR (Riser) jacket with heat shrink to prevent the zipcord from separating from the connector.

Constructed with the highest quality Corning Clearcurve Bend Insensitive Fiber (BIF) glass. This premium construction allows Lynn to deliver the best macro-bending performance in the industry - up to 10x less signal loss in tight bend scenarios. Fiber patch cable can be installed in loops less than a 7.5mm radius producing less than 0.2 dB bending loss at 850nm to meet the demands for today's hyper-scale data centers. Each cable is tested to meet industry standards. Test results are included in a sticker in the bag for every cable for easy documentation.

Construction:
Fiber Type: 20/125μm
Fiber Count: Duplex
Glass: Corning Clearcurve Bend Insensitive Fiber (BIF)
Polish Type: PC
Connector Types: LC, SC, and ST
Jacket: Flammability rating OFNR (Riser), 2mm outside diameter, heat shrink to prevent zipcord from separting from connector

Performance:
40 and 100 Gigabit Ethernet: Up to 150 meters at 850nm
10 Gigabit Ethernet: Up to 550 meters at 850nm, up to 300 meters at 1300nm
1 Gigabit Ethernet: Up to 1,000 meters at 850nm, up to 550 meters at 1300nm
100 Megabit Ethernet: up to 2,000 meters at 850nm
Insertion Loss: ≤0.25dB
Return Loss: ≥25dB
Durability: >500 Matings
Operating Temperature: -20°C to 70°C (-4°F to 158°F)
