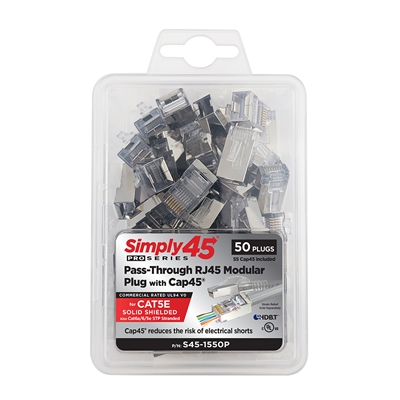

Simply45 Cat5e Solid Shielded Pass-Through RJ45 Modular Plugs with Cap45 - 50 Piece Clamshell
Simply45 Cat5e Solid Shielded Pass-Through RJ45 Modular Plugs with Cap45 - 50 Piece Clamshell

Alternative Views:
Price: $74.95
Your Price: $62.95
Savings: $12.00

Quantity in Stock:Notify Me When Back in Stock

Product Code: S45-1550P
Qty:

Description

Simply45 Cat5e Solid Shielded Pass-Through RJ45 Modular Plugs with Cap45 - 50 Piece Clamshell

Simply45 ProSeries hybrid connectors feature the patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45 only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. These connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45 ProSeries the most reliable terminations on the market today.

Features:
  • Category Type: Cat5e
  • Connector Style: Pass Through with Cap45
  • Wire Alignment: Straight Insert
  • Cable Type: STP
  • AWG: 24AWG Solid, 28-26AWG Stranded
  • Conductor Range: 0.95 - 1.05mm (0.037" - 0.041")
  • Max Cable OD: 6.5mm (0.255")
  • Plug Material: Polycarbonate
  • Material Rating: UL94 V0 Commercial (Plenum LSZH) Rated
  • Plug Color: Blue Tint
  • Contact Design: 3 Prong Style
  • Contact Material: Phosphor Bronze
  • Base Contact Plating: 100µ of nickel plating
  • Surface Contact Plating: 50µ 24ct Gold
  • UL & cUL Listed: E520614
  • Compliant: TAA, P65
  • HDBaseT: Approved
  • Connector Quantity: 50 Pieces
  • Cap45 Quantity: 55 Pieces
