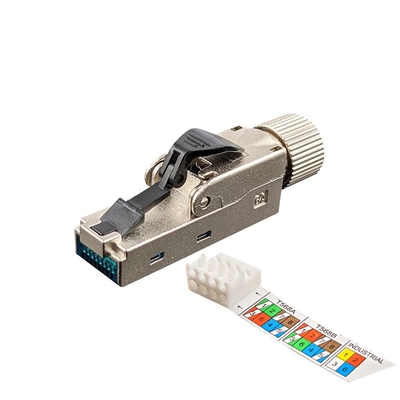

Simply45 Cat6/6a/7a Ultra Slim Fully Shielded RJ45 LAN Cable Field Plug - Single
Simply45 Cat6/6a/7a Ultra Slim Fully Shielded RJ45 LAN Cable Field Plug - Single

Price: $12.95
Your Price: $10.60
Savings: $2.35

Quantity in Stock:Notify Me When Back in Stock

Product Code: S45-1710S
Qty:

Description

Simply45 Cat6/6a/7a Ultra Slim Fully Shielded LAN Cable Field Plug - Single

The RJ45 Field Plug is a toolless 1-piece design field plug providing outstanding performance, reliability, and easy of use for today's 10BaseT networking applications. Supports Side-by-Side installation in High Density Patch Panels and Device Sockets. Improved wiring layout for faster and easier terminations. Built-in strain relief - easier to use and supports shallower depth installations.

  • PoE/PoH Support for IEEE 802.3bt
  • 10G Network Applications & IP-Enabled Devices
  • Fully Shielded One Piece Construction
  • Toolless - No special tools needed
  • Improved Load Bar for faster & easier wire pattern terminations
  • Wiring Label: TIA 568 A/B Patterns
  • Standards Compliance: ANSI/TIA 568.2-D; ISO/IEC 11801 Class Fa, Ea, E; TIA 1096-A
  • All Shielded Category Cable Constructions Supported for Cat7a, Cat7, Cat6a, and Cat6
  • Ideal for large diameter cables and conductors
  • Supports 22-26 AWG Solid Wire/23-27 AWG Stranded Wire
  • Overall Cable Diameter: 6.0mm to 9.0mm
  • Reusable Termination Capability: Up to 5 Times
  • PoE IEEE 802.3bt
  • Protection Category: IP20
  • Dimensions: 1.8" L x 0.53" H x 0.4 W (48.05 mm L x 13.56mm H x 11.68mm W)
