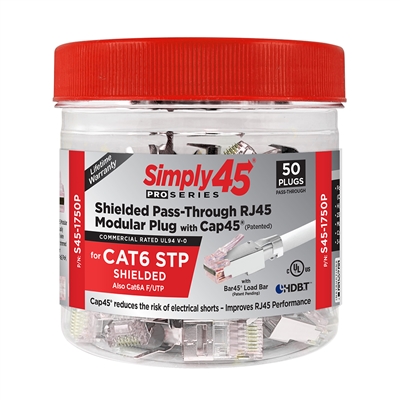

Simply45 ProSeries Cat6/6a Shielded External Ground - Pass-Through RJ45 with Cap45 & Bar45 - 50 Piece Jar
Simply45 ProSeries Cat6/6a Shielded External Ground - Pass-Through RJ45 with Cap45 & Bar45 - 50 Piece Jar

Alternative Views:
Price: $118.95
Your Price: $99.95
Savings: $19.00

Quantity in Stock:Notify Me When Back in Stock

Product Code: S45-1750P
Qty:

Description

Simply45 ProSeries Cat6/6a Shielded External Ground - Pass-Through RJ45 with Cap45 & Bar45 - 50 Piece Jar

Simply45 ProSeries hybrid connectors feature the patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45 only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. These connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45 ProSeries the most reliable terminations on the market today.

Features:
  • Category Type: Cat6/6a
  • Connector Style: Pass Through with Cap45
  • Wire Alignment: Hi/Lo Stagger Load Bar
  • Cable Type: STP
  • AWG: 23AWG Solid
  • Conductor Range: 1.10mm - 1.20mm (0.043" - 0.047")
  • Max Cable OD: 8mm (0.315")
  • Plug Material: Polycarbonate
  • Material Rating: UL94 V0 Commercial (Plenum LSZH) Rated
  • Plug Color: Red Tint
  • Contact Design: 3 Prong Style
  • Contact Material: Phosphor Bronze
  • Base Contact Plating: 100µ of nickel plating
  • Surface Contact Plating: 50µ 24ct Gold
  • UL & cUL Listed: E520614
  • Compliant: TAA, P65
  • HDBaseT: Approved
  • Connector Quantity: 50 Pieces
  • Metal Shell Quantity: 50 Pieces
