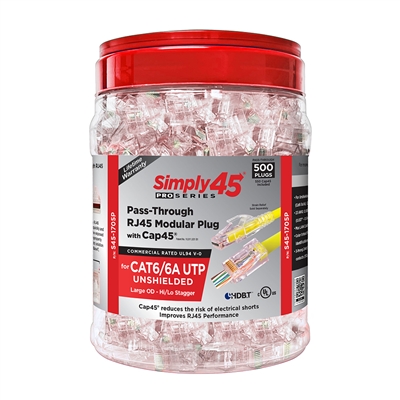

Simply45 ProSeries Cat6/6a Unshielded Pass-Through RJ45 Modular Plugs with Cap45 - 500 Piece Jar

Simply45 ProSeries hybrid connectors feature the patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45 only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. These connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45 ProSeries the most reliable terminations on the market today.

Features:

• Category Type: Cat6/6a
• Connector Style: Pass Through with Cap45
• Wire Alignment: Hi/Lo Stagger
• Cable Type: UTP
• AWG: 23AWG Solid
• Conductor Range: 1.05mm - 1.20mm (0.041" - 0.047")
• Max Cable OD: 7.4mm (0.291")
• Plug Material: Polycarbonate
• Material Rating: UL94 V0 Commercial (Plenum LSZH) Rated
• Plug Color: Red Tint
• Contact Design: 3 Prong Style
• Contact Material: Phosphor Bronze
• Base Contact Plating: 100µ of nickel plating
• Surface Contact Plating: 50µ 24ct Gold
• UL & cUL Listed: E520614
• Compliant: TAA, P65
• HDBaseT: Approved
• Connector Quantity: 500 Pieces
• Cap45 Quantity: 550 Pieces
