Trine 4100-32D Electric Strike
Trine 4100-32D Electric Strike

Price: $365.00

Quantity in Stock:Notify Me When Back in Stock

Free Shipping
Product Code: 4100-32D
Qty:

Description

Trine 4100-32D Electric Strike

Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept and used to help accomodate for door sag. Included are 4 most used faceplates to make specifying and installing easy.

  • Grade 1 Electric Strike - heavy duty construction, 1,000,000+ Life cycles - 3,250+ lbs. Holding Force

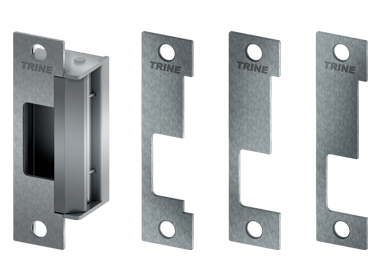

  • Four popular faceplates included - includign the 4 most used faceplates in the box makes specifying and installing easier than ever
  • 1 - 3/8" Shallow Backset - The 4100 low profile electric strike can be used in 2" fire rated frames with 1/2" sheetrock ingress
  • Low Current Draw - .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC : 12 through 24 AC. All the low voltage and amperage flexibility you need
  • The included CCTS covers the gap when retrofitting the HES 1006, Folger Adams 712/732 and Von Duprin 6200 Series or even Trine EN Series Strikes - No more ugly trim skirts, the CCTS always matches the faceplate finish
  • Why cut for a deadbolt 100% of the time when they are only used 5% of the time
  • Patent #US20110241361
Standards:
  • Class A, 3 Hour fire rated single door / frame configuration
  • WH recognized for UL10C, Fire Tests of Door Assemblies
  • UBC 7-2, Uniform building code
  • CAN4 S104, Standard Method for Fire Tests of Door Assemblies
  • NOTE: WH fire listing is void when using fail safe action
  • UL Listed - 1034 Burglary Resistant
  • UL294 (6th Edition) listed
  • ANSI A156.5 - 1992 - 4-7/8" X 1-1/4" Fits
4100 Available in: Black Powder Coat, Satin Stainless Steel, Bright Brass, Satin Bronze, Dark Bronze, Satin Brass, and Stainless Steel.

Please call in for all available options and special order opportunities!
