Wavenet SC2202R 22/2C CMR Solid Unshielded Riser Security Cable - White - 1000 Ft
Wavenet SC2202R 22/2C CMR Solid Unshielded Riser Security Cable - White - 1000 Ft

Alternative Views:
Price: $63.00


Product Code: SC2202RXX1
Qty:

Description

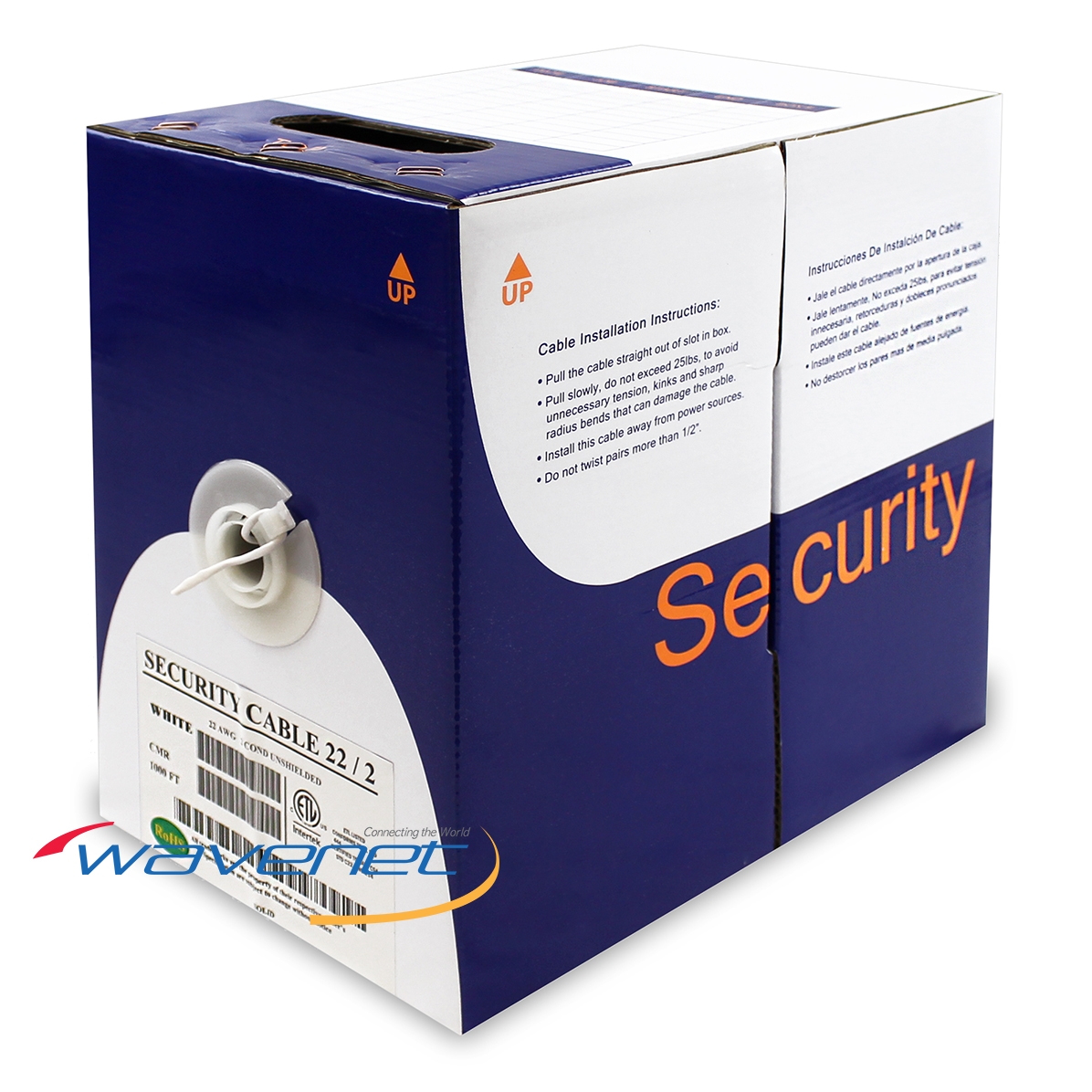

Wavenet SC2202R 22/2C CMR Solid Unshielded Riser Security Cable - White - 1000 Ft

This is a 2 conductor, 22 AWG wire wrapped in a single, easy to pull jacket. It is most commonly used to connect to alarm systems, security sensors, garage door opener controls; but can be used for any purpose. Commonly known as: Security Cable, Wavenet Cable, OSHA Cable, Communication Cable, Circuit Cable, CMR Cable.

Specifications:
  • Convenient, 1,000 Ft Easy Pull Box
  • AWG Size: 22
  • Number of Conductors: 2
  • Conductor Material: Bare Copper
  • Diameter: 0.61 (mm)
  • Insulation Material: Polyvinyl Chloride (PVC)
  • Insulation Diameter: 0.96 (mm)
  • Jacket Material: Polyvinyl Chloride (PVC)
  • Thickness: 0.45 (mm)
  • Overall Diameter: 2.80 (mm)
  • Rip Cord: Yes
  • Voltage: 300V RMS
  • Temperature Rating: 75C
